CUTTING Bit

Submitted by timtim174 on Feb 10, 2008 in Construction & Tools
Tags: tool
CUTTING Bit
CUTTING Bit
CUTTING Bit
CUTTING Bit

Description:

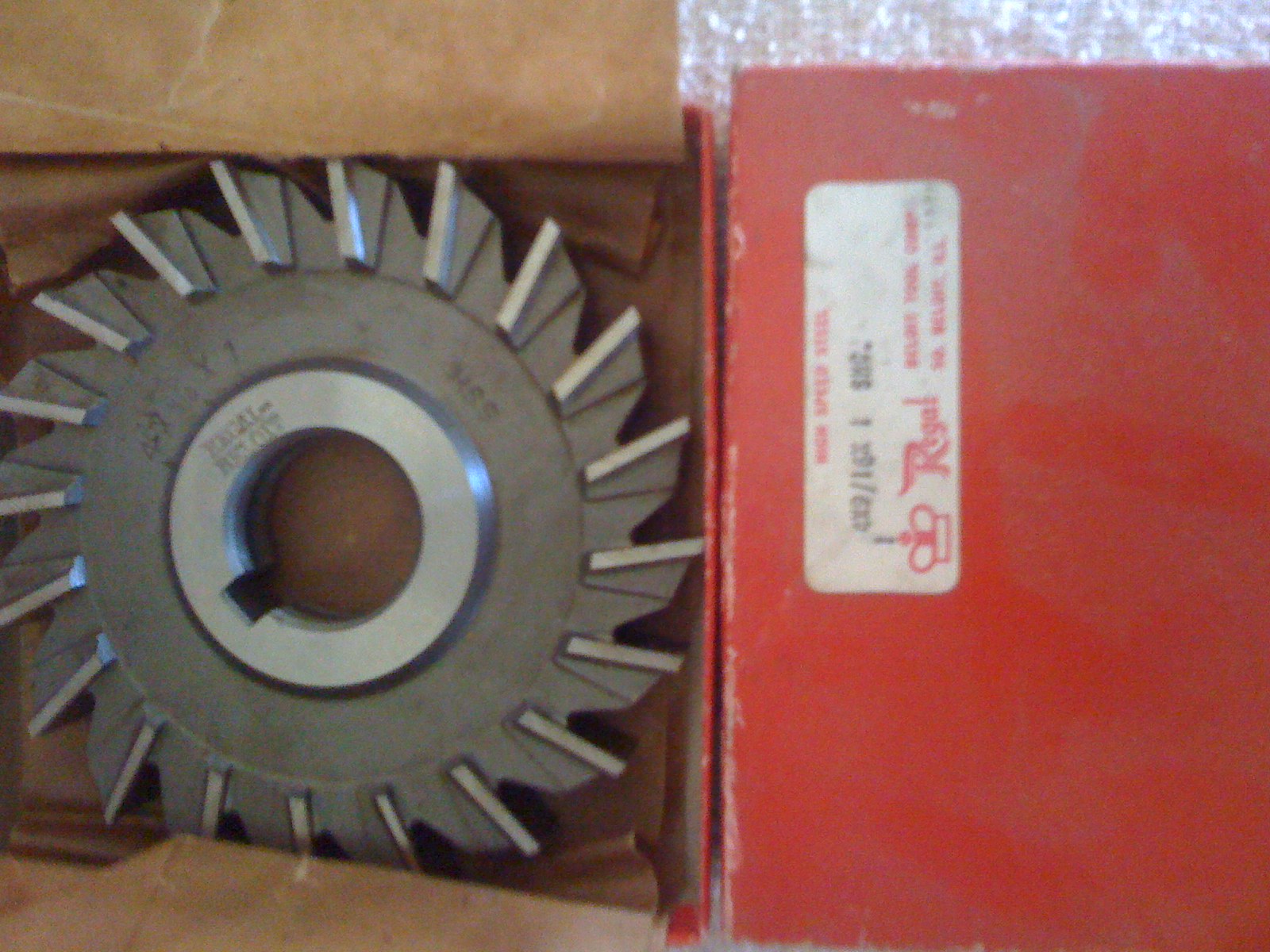

Got this piece in with other bits but im not sure what machine this one would go to or its value anyone know?

Comments:

yorway on Feb 10, 2008 at 13:56 PM
looks like a bit from a milling machine
oldcavpilot on Feb 15, 2008 at 03:39 AM
This is an industrial "dado" blade which is used for cutting grooves the shape of the blades into wood, normally used for joining. Grooves that shelves fit into or something like that. The notch is called a 'key seat'. A rectangular piece of metal would be placed in a matching groove on the shaft to insure it turns at the same speed as ther shaft and won't slip. I have the same type of thing for my power saws at home, but this is much more 'heavy duty'. It's not for metal, or the blades would be carbide.
tlgriff on Mar 05, 2008 at 09:21 AM
It's called a slitting saw and it is for metal. It is used in a milling machine to cut slots or grooves. It would not work well at all in wood because the clearance angles are not big enough (it would burn the wood) BTW, I am a machinist by trade. Tom
